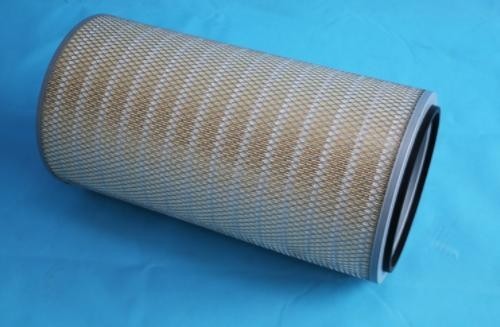

Nano fibre filter cartridge

Description
1) Imported nano fiber and wood fiber composite.
2) can highly remove the anti purge process of small particles
3) The filtration effciency level F7-F9
4) The filter material strength is high,the stiffness is good,has the outstanding moisture resistance.
Optional Filter Media:
1) Spunbonded polyester
2) Polyester + Oil and water repellent
3) Polyester + PTFE Membrane (Coated by glue & Coated by heating)
4) Polyester + Anti-static (Aluminized antistatic & Polymer Antistatic )
5) Polyester + Flame retardant
6) Polyester + Dual anti-treatment (Anti-static+Flame retardant, Oil and water repellent+ Anti-static, PTFE Membrane+ Anti-static)
We will choose the most suitable filter media according to customers' requirement.
End Casp & Inner Core: Electro-galvanized to prevent corrosion. Stainless steel is also available.
Gasket: Professional sealing obturator elastic neoprene.
Features of dust cartridge:
1) Operating temperature135C.
2) Greatly increase the effective filtration area.
3) Ensure a low steady differential pressure, improve the circulation of air flow.
4) Small filter cartridge element, easy to install.
5) Especially suitable for large dust concentration industry.

Material	Nano Fibre
Structure	Cylindrical Filter Cartridge
Dimension	(OD)324*(ID)213*(H)660mm Sizes are according to your requirements.
Efficiency	100%(Particles≥5m)
End Caps	Galvanized sheet
Inner Core / Outer Line	Galvanized diamond mesh
Gasket	Foam Rubber
Construction	Open/Closed with bolt hole
MOQ	NO MOQ . But advice full container to save cost. 20GP FCL:306 sets 40GP FCL:612 sets 40HQ FCL:714 sets
Loading Port	Shanghai
Lead Time	10~15 days
Payment	T/T ; West Union ; Paypal
Package	Carton
